Api | James Tanner

Recovered from the older tannerjc.net wiki snapshot dated January 23, 2016.

http://www.yworks.com/en/products_yed_about.html
Extract satellite jars
/usr/lib/jvm/java-1.5.0-ibm-1.5.0.9.x86_64/bin/jar xf /var/lib/tomcat5/webapps/rhn/WEB-INF/lib/xml-commons-apis.jarr

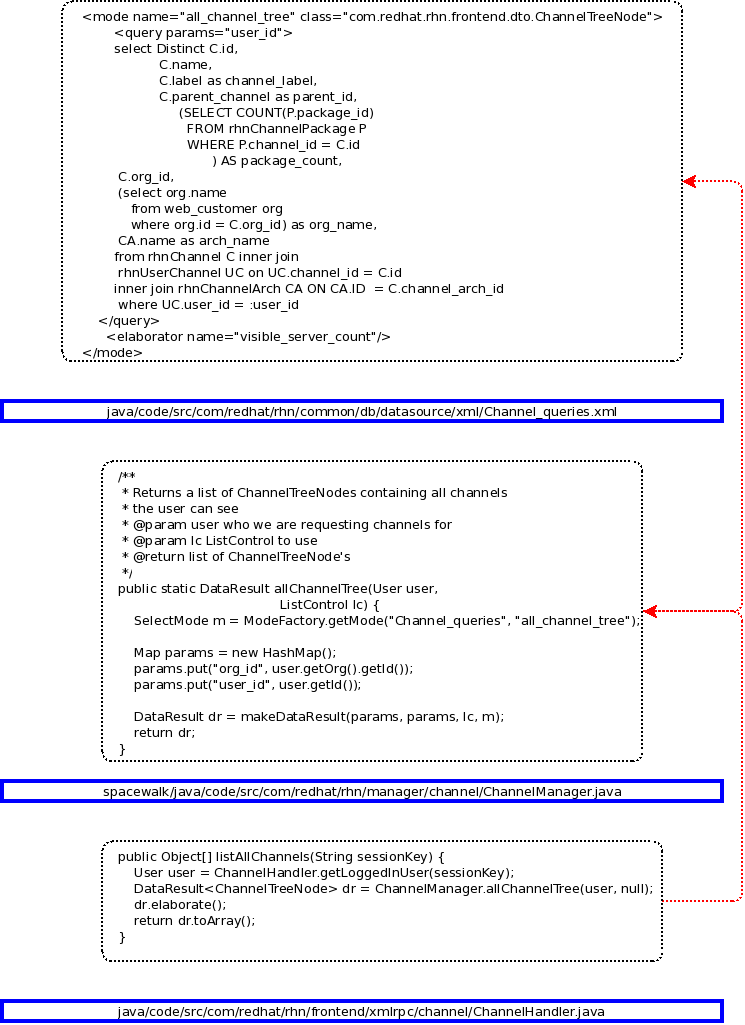

channel.listAllChannels

Extracting xml files from jars

rhns-5.2

[root@sat52 ~]# rpm -ql rhn-java-sat | egrep rhn.jar
/var/lib/tomcat5/webapps/rhn/WEB-INF/lib/rhn.jar

[root@sat52 ~]# jar tf /var/lib/tomcat5/webapps/rhn/WEB-INF/lib/rhn.jar | fgrep -i channel_queries
com/redhat/rhn/common/db/datasource/xml/Channel_queries.xml

[root@sat52 ~]# cp /var/lib/tomcat5/webapps/rhn/WEB-INF/lib/rhn.jar /tmp/.
[root@sat52 ~]# cd /tmp
[root@sat52 tmp]# jar xf rhn.jar
[root@sat52 tmp]# find com | fgrep -i channel_queries
com/redhat/rhn/common/db/datasource/xml/Channel_queries.xml

rhns-5.4

[root@sat54 ~]# rpm -ql spacewalk-java | egrep rhn.jar
/var/lib/tomcat5/webapps/rhn/WEB-INF/lib/rhn.jar

[root@sat54 ~]# jar -tf /var/lib/tomcat5/webapps/rhn/WEB-INF/lib/rhn.jar | fgrep -i channel_queries
com/redhat/rhn/common/db/datasource/xml/Channel_queries.xml

[root@sat54 ~]# cp /var/lib/tomcat5/webapps/rhn/WEB-INF/lib/rhn.jar /tmp/.
[root@sat54 ~]# cd /tmp
[root@sat54 tmp]# jar xf rhn.jar
[root@sat54 tmp]# find com | fgrep -i channel_queries
com/redhat/rhn/common/db/datasource/xml/Channel_queries.xml
